Platarg 3010 (x3)
Ref: A3

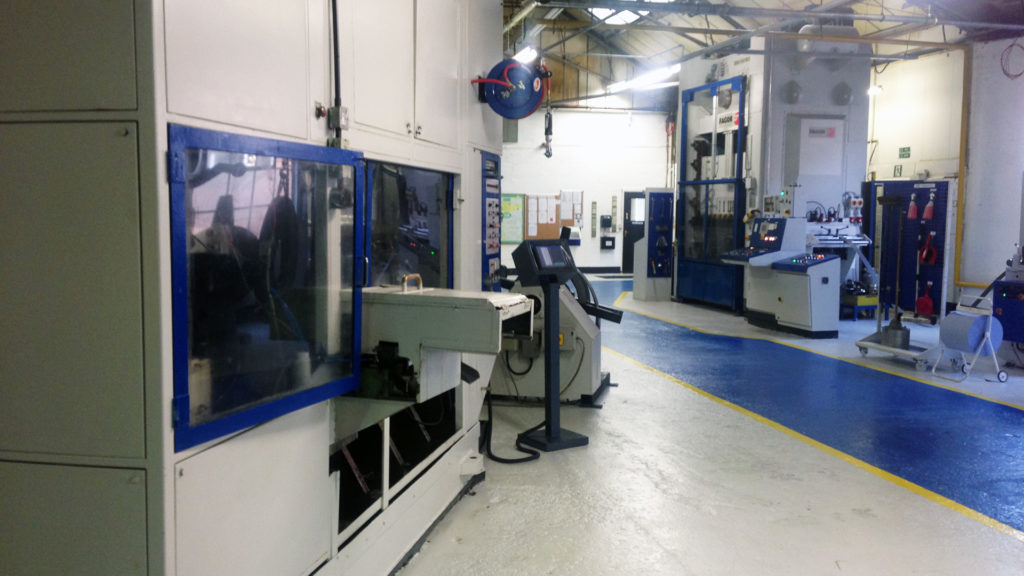

We operate four Platarg 3010 presses, all recently serviced and maintained to the highest standard, ensuring consistent precision and reliability in production.
The Platarg 3010 is a world-class multi-stage forming press, trusted for its strength, speed and precision. With 10 stations and a total capacity of 160 tonnes, it’s built to handle complex progression work with accuracy and efficiency. We operate four Platarg 3010 presses on site, all recently serviced and maintained to the highest standards, giving our customers the assurance of consistent quality, reliability and production capacity.
Specification Ref A3
Tonnage Range 30 per Stage (10 Stage)
Bed Size 1350mm x 470mm
Speed Range 12 – 60 SPM
Feed System Gripper Feed
Specification Ref A4
Tonnage Range 30 per Stage (10 Stage)
Bed Size 1350mm x 470mm
Speed Range 12 – 60 SPM
Feed System Gripper Feed
Specification Ref 5
Tonnage Range 30 per Stage (10 Stage)
Bed Size 1350mm x 470mm
Speed Range 12 – 60 SPM
Feed System Gripper Feed
Material Handling
Material Types Stainless steel, mild steel, aluminum, brass
Max Strip Width 145mm
Max Material Thickness 1.5mm
Key Features
High-speed production capabilities
Precision forming with real-time monitoring
Advanced lubrication system for improved die life
In-die sensors for quality control
Energy-efficient servo drive system (if applicable)
Typical Applications
